Wireframe Class Referenceabstract
#include <Wireframe.h>
# Public Types | |
| typedef const WireframeSpec | WireframeROMSpec |
# Public Member Functions | |
| void | constructor (Entity owner, const WireframeSpec *wireframeSpec) |
| void | setDisplacement (Vector3D displacement) |
| bool | isVisible () |
| bool | prepareForRender (Vector3D *relativePosition, const Vector3D *cameraDirection) |
| virtual VirtualList | getVertices () |
| virtual void | render (Vector3D relativePosition) |
| virtual bool | draw ()=0 |
# Private Attributes | |
| Vector3D | displacement |
| Displacement relative to the owner's spatial position. | |
| fixed_ext_t | squaredDistanceToCamera |
| Wireframe's squared distance to the camera's position. | |
| bool | drawn |
| Flag that indicates that the wireframe has been drawn. | |
| bool | interlaced |
| Flag to render the wireframe in interlaced mode. | |
| uint8 | color |
| Color for the wireframe. | |
| uint8 | bufferIndex |
| Index of the last frame buffer used in interlaced mode. | |
 Private Attributes inherited from VisualComponent | |
| AnimationController | animationController |
| Animation controller. | |
| uint8 | transparency |
| Transparecy effect (__TRANSPARENCY_NONE, __TRANSPARENCY_EVEN or __TRANSPARENCY_ODD) | |
| uint8 | show |
| Show state flag (__HIDE, __SHOW) | |
| bool | rendered |
| Rendering status flag. | |
| bool | updateAnimationFrame |
| Flag to allow/prohibit the update of the animation. | |
# Additional Inherited Members | |
| Private Types inherited from VisualComponent | |
| enum | VisualComponentCommands |
| typedef const AnimationFunction | AnimationFunctionROMSpec |
| Private Member Functions inherited from VisualComponent | |
| void | constructor (Entity owner, const VisualComponentSpec *visualComponentSpec) |
| override void | handleCommand (int32 command, va_list args) |
| void | show () |
| Make the visual component visible. | |
| void | hide () |
| Make the visual component invisible. | |
| uint8 | getTransparent () |
| void | setTransparency (uint8 transparency) |
| bool | play (const char *animationName, ListenerObject scope) |
| bool | replay () |
| void | pause (bool pause) |
| void | stop () |
| Stop any playing animation if any. | |
| bool | isPlaying () |
| bool | isPlayingAnimation (char *animationName) |
| void | nextFrame () |
| Skip the currently playing animation to the next frame. | |
| void | previousFrame () |
| Rewind the currently playing animation to the previous frame. | |
| void | setActualFrame (int16 actualFrame) |
| int16 | getActualFrame () |
| void | setFrameDuration (uint8 frameDuration) |
| uint8 | getFrameDuration () |
| Retrieve the duration in game cycles for each frame of animation. | |
| void | setFrameDurationDecrement (uint8 frameDurationDecrement) |
| const char * | getPlayingAnimationName () |
| AnimationController | getAnimationController () |
| virtual void | createAnimationController () |
| Create an animation controller for this sprite. | |
| virtual void | forceChangeOfFrame (int16 actualFrame) |
# Detailed Description

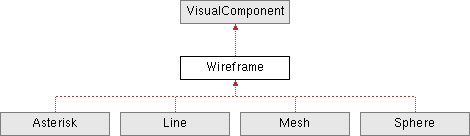

Class Wireframe
Inherits from VisualComponent
Draws 3D shapes to the frame buffers.
Definition at line 70 of file Wireframe.h.
# Member Typedef Documentation
# WireframeROMSpec
| typedef const WireframeSpec WireframeROMSpec |
A Wireframe spec that is stored in ROM
Definition at line 59 of file Wireframe.h.
# Member Function Documentation
# constructor()
| void Wireframe::constructor | ( | Entity | owner, |
| const WireframeSpec * | wireframeSpec ) |
Class' constructor
- Parameters
-
owner Entity to which the wireframe attaches to wireframeSpec Specification that determines how to configure the wireframe
Definition at line 35 of file Wireframe.c.
# draw()
|
pure virtual |
# getVertices()
|
virtual |
Retrieve the list of vertices that compose the mesh.
- Returns
- Linked list of vertices
Reimplemented in Mesh.
Definition at line 195 of file Wireframe.c.
# isVisible()
| bool Wireframe::isVisible | ( | ) |
Check if the wireframe is visible.
- Returns
- True if the wireframe is visible; false otherwise
Definition at line 80 of file Wireframe.c.
# prepareForRender()
Configure the wireframe to be drawn.
- Parameters
-
relativePosition relativePosition: Wireframe's position relative to the camera's position cameraDirection Direction towards which the camera is facing
- Returns
- True if the wireframe is visible within the camera's frustum; false otherwise
Definition at line 87 of file Wireframe.c.
# render()
|
virtual |
# setDisplacement()
| void Wireframe::setDisplacement | ( | Vector3D | displacement | ) |
Set the displacement relative to the owner's spatial position
- Parameters
-
displacement Displacement relative to the owner's spatial position
Definition at line 73 of file Wireframe.c.
# Member Data Documentation
# bufferIndex
|
private |
Index of the last frame buffer used in interlaced mode.
Definition at line 88 of file Wireframe.h.
# color
|
private |
Color for the wireframe.
Definition at line 85 of file Wireframe.h.
# displacement
|
private |
Displacement relative to the owner's spatial position.
Definition at line 73 of file Wireframe.h.
# drawn
|
private |
Flag that indicates that the wireframe has been drawn.
Definition at line 79 of file Wireframe.h.
# interlaced
|
private |
Flag to render the wireframe in interlaced mode.
Definition at line 82 of file Wireframe.h.
# squaredDistanceToCamera
|
private |
Wireframe's squared distance to the camera's position.
Definition at line 76 of file Wireframe.h.
The documentation for this class was generated from the following files:
- VUEngine-Core/source/Component/VisualComponent/Wireframe/Wireframe.h
- VUEngine-Core/source/Component/VisualComponent/Wireframe/Wireframe.c
