#include <Entity.h>

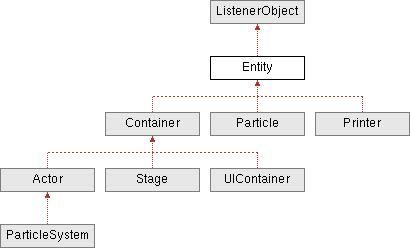

Inheritance diagram for Entity:

# Public Member Functions
void	constructor ()
	Class' constructor.
override bool	handleMessage (Telegram telegram)
void	clearComponentLists (uint32 componentType)
Component	addComponent (const ComponentSpec *componentSpec)
void	removeComponent (Component component)
void	addComponents (ComponentSpec **componentSpecs, uint32 componentType)
void	removeComponents (uint32 componentType)
Component	getComponentAtIndex (uint32 componentType, int16 componentIndex)
VirtualList	getComponents (uint32 componentType)
bool	getComponentsOfClass (ClassPointer classPointer, VirtualList components, uint32 componentType)
uint16	getComponentsCount (uint32 componentType)
void	resetComponents ()
	Reset components.
void	setVisible ()
	Set this instance's visibility flag up.
const Transformation *	getTransformation ()
const Vector3D *	getPosition ()
const Rotation *	getRotation ()
const Scale *	getScale ()
Body	getBody ()
bool	isMoving ()
void	stopAllMovement ()
	Stop all entity's movement.
void	stopMovement (uint16 axis)
bool	setVelocity (const Vector3D *velocity, bool checkIfCanMove)
const Vector3D *	getVelocity ()
fixed_t	getSpeed ()
fixed_t	getMaximumSpeed ()
fixed_t	getBounciness ()
fixed_t	getFrictionCoefficient ()
void	enableCollisions ()
	Enable collision detection on the entity's colliders.
void	disableCollisions ()
	Disable collision detection on the entity's colliders.
void	checkCollisions (bool activate)
void	registerCollisions (bool activate)
void	setCollidersLayers (uint32 layers)
uint32	getCollidersLayers ()
void	setCollidersLayersToIgnore (uint32 layersToIgnore)
uint32	getCollidersLayersToIgnore ()
bool	hasColliders ()
void	showColliders ()
	Make the entity's colliders visible.
void	hideColliders ()
	Make the entity's colliders invisible.
virtual void	createComponents (ComponentSpec **componentSpecs)
virtual void	destroyComponents ()
	Destroy the components that attach to this container.
virtual void	addedComponent (Component component)
virtual void	removedComponent (Component component)
virtual void	show ()
	Make this instance visible.
virtual void	hide ()
	Make this instance invisible.
virtual void	setTransparency (uint8 transparency)
virtual void	calculateSize ()
	Configure the entity's size.
virtual fixed_t	getRadius ()
virtual void	setPosition (const Vector3D *position)
virtual void	setRotation (const Rotation *rotation)
virtual void	setScale (const Scale *scale)
virtual void	setDirection (const Vector3D *direction)
virtual const Vector3D *	getDirection ()
virtual bool	applyForce (const Vector3D *force, bool checkIfCanMove)
virtual bool	canMoveTowards (Vector3D direction)
virtual bool	isSensibleToCollidingObjectBouncinessOnCollision (Entity collidingEntity)
virtual bool	isSensibleToCollidingObjectFrictionOnCollision (Entity collidingEntity)
virtual bool	isSubjectToGravity (Vector3D gravity)
virtual bool	collisionStarts (const CollisionInformation *collisionInformation)
virtual void	collisionPersists (const CollisionInformation *collisionInformation)
virtual void	collisionEnds (const CollisionInformation *collisionInformation)
virtual uint32	getInGameType ()

# Protected Attributes
VirtualList *	components
	Linked list of attached components.
Transformation	transformation
	3D transformation
Body	body
bool	isVisible
	Flag used for streaming purposes.

# Additional Inherited Members
Private Member Functions inherited from ListenerObject
void	constructor ()
	Class' constructor.
void	destructor ()
	Class' destructor.
void	addEventListener (ListenerObject listener, uint16 eventCode)
void	removeEventListener (ListenerObject listener, uint16 eventCode)
void	removeEventListeners (uint16 eventCode)
void	removeAllEventListeners ()
	Remove all listener objects.
bool	hasActiveEventListeners ()
void	fireEvent (uint16 eventCode)
void	sendMessageTo (ListenerObject receiver, uint32 message, uint32 delay, uint32 randomDelay)
void	sendMessageToSelf (uint32 message, uint32 delay, uint32 randomDelay)
void	discardAllMessages ()
	Discard all messages, both to be sent and to be received.
void	discardMessages (uint32 message)
virtual bool	onEvent (ListenerObject eventFirer, uint16 eventCode)
Private Attributes inherited from ListenerObject
VirtualList	events
	List of registered events.
int8	eventFirings
	Counter that keeps track of the number of fired events to prevent race conditions in nested firings.

# Detailed Description

Class Entity

Inherits from ListenerObject

Defines objects that occupy a place in 3D space.

Definition at line 38 of file Entity.h.

# Member Function Documentation

# addComponent()

Component Entity::addComponent ( const ComponentSpec * componentSpec )

Attach a new component to the entity and configure it with the provided spec.

Parameters

componentSpec Specification to be used to configure the new component

Returns: Added component

Definition at line 120 of file Entity.c.

# addComponents()

void Entity::addComponents	(	ComponentSpec **	componentSpecs,
		uint32	componentType )

Attach a new components to the entity and configure it with the provided specs.

Parameters

componentSpecs	Specifications to be used to configure the new components
componentType	Type of components to add

Definition at line 134 of file Entity.c.

# addedComponent()

void Entity::addedComponent ( Component component )

virtual

A new component has been added to this entity.

Parameters

component Added component

Definition at line 470 of file Entity.c.

# applyForce()

bool Entity::applyForce	(	const Vector3D *	force,
		bool	checkIfCanMove )

virtual

Apply a force to the entity's body.

Parameters

force	Force to be applied
checkIfCanMove	If true, the entity checks that none of its colliders will

Returns: True if the force was succesfully applied to the entity's body

Definition at line 618 of file Entity.c.

# calculateSize()

void Entity::calculateSize ( )

virtual

Configure the entity's size.

Reimplemented in Actor.

Definition at line 561 of file Entity.c.

# canMoveTowards()

bool Entity::canMoveTowards ( Vector3D direction )

virtual

Check if the entity will enter a collision if it were to move in the provided direction

Parameters

direction Direction vector to check

Definition at line 642 of file Entity.c.

# checkCollisions()

void Entity::checkCollisions ( bool activate )

Enable or disable collision detection against other entitys' colliders.

Parameters

activate If true, this entity's colliders check collision against other entitys'

Definition at line 370 of file Entity.c.

# clearComponentLists()

void Entity::clearComponentLists ( uint32 componentType )

Clear the linked lists of components.

Parameters

componentType Type of components whose lists must be cleard

Definition at line 90 of file Entity.c.

# collisionEnds()

void Entity::collisionEnds ( const CollisionInformation * collisionInformation )

virtual

Process when a previously detected collision by one of the component colliders stops.

Parameters

collisionInformation Information struct about the collision to resolve

Definition at line 754 of file Entity.c.

# collisionPersists()

void Entity::collisionPersists ( const CollisionInformation * collisionInformation )

virtual

Process a going on collision detected by one of the component colliders.

Parameters

collisionInformation Information struct about the collision to resolve

Definition at line 749 of file Entity.c.

# collisionStarts()

bool Entity::collisionStarts ( const CollisionInformation * collisionInformation )

virtual

Process a newly detected collision by one of the component colliders.

Parameters

collisionInformation Information struct about the collision to resolve

Returns: True if the collider must keep track of the collision to detect if it persists and when it ends; false otherwise

Reimplemented in Particle.

Definition at line 704 of file Entity.c.

# constructor()

void Entity::constructor ( )

Class' constructor.

Definition at line 39 of file Entity.c.

# createComponents()

void Entity::createComponents ( ComponentSpec ** componentSpecs )

virtual

Create the components that must attach to this container.

Parameters

componentSpecs Specifications to be used to configure the new components

Reimplemented in Actor.

Definition at line 448 of file Entity.c.

# destroyComponents()

void Entity::destroyComponents ( )

virtual

Destroy the components that attach to this container.

Reimplemented in Actor.

Definition at line 462 of file Entity.c.

# disableCollisions()

void Entity::disableCollisions ( )

Disable collision detection on the entity's colliders.

Definition at line 363 of file Entity.c.

# enableCollisions()

void Entity::enableCollisions ( )

Enable collision detection on the entity's colliders.

Definition at line 356 of file Entity.c.

# getBody()

Body Entity::getBody ( )

Retrieve the entity's physical body.

Returns: Entity's physical body

Definition at line 244 of file Entity.c.

# getBounciness()

fixed_t Entity::getBounciness ( )

Retrieve the object's bounciness fentity.

Returns: Object's bounciness fentity

Definition at line 332 of file Entity.c.

# getCollidersLayers()

uint32 Entity::getCollidersLayers ( )

Retrieve the layers in which this entity's colliders live.

Returns: Flags that determine the layers where the entity's colliders live

Definition at line 391 of file Entity.c.

# getCollidersLayersToIgnore()

uint32 Entity::getCollidersLayersToIgnore ( )

Retrieve the layers that the entity's colliders ignore when detecting collision.

Returns: The layers that the entity's colliders ignore when detecting collision

Definition at line 416 of file Entity.c.

# getComponentAtIndex()

Component Entity::getComponentAtIndex	(	uint32	componentType,
		int16	componentIndex )

Retrieve a component of the given type at the desired position.

Parameters

componentType	Type of components to add
componentIndex	Component's index according to their order of creation

Returns: Component at the provided index position

Definition at line 148 of file Entity.c.

# getComponents()

VirtualList Entity::getComponents ( uint32 componentType )

Retrieve a list with the components of the provided type.

Parameters

componentType Type of components to add

Returns: Linked list of components of the type provided

Definition at line 155 of file Entity.c.

# getComponentsCount()

uint16 Entity::getComponentsCount ( uint32 componentType )

Retrieve the number of components belonging to the entity.

Parameters

componentType Type of components to count

Returns: Number of components belonging to the entity

Definition at line 194 of file Entity.c.

# getComponentsOfClass()

bool Entity::getComponentsOfClass	(	ClassPointer	classPointer,
		VirtualList	components,
		uint32	componentType )

Retrieve the linked list of components that are instances of the provided class.

Parameters

classPointer	Pointer to the class to use as search criteria. Usage: typeofclass(ClassName)
components	Linked list to be filled with the components that meed the search criteria (it is externally allocated and must be externally deleted)
componentType	Type of components to retrieve

Returns: True if one or more components met the search criteria; false otherwise

Definition at line 187 of file Entity.c.

# getDirection()

const Vector3D * Entity::getDirection ( )

virtual

Retrieve the direction towards which the object is moving.

Returns: Pointer to the direction towards which the object is moving

Definition at line 604 of file Entity.c.

# getFrictionCoefficient()

fixed_t Entity::getFrictionCoefficient ( )

Retrieve the object's friction coefficient.

Returns: Object's friction coefficient

Definition at line 344 of file Entity.c.

# getInGameType()

uint32 Entity::getInGameType ( )

virtual

Retrieve the enum that determines the type of game object.

Returns: The enum that determines the type of game object

Reimplemented in Actor, and Particle.

Definition at line 772 of file Entity.c.

# getMaximumSpeed()

fixed_t Entity::getMaximumSpeed ( )

Retrieve the entity's maximum speed.

Returns: Maximum speed at which the entity's body is allowed to move

Definition at line 325 of file Entity.c.

# getPosition()

const Vector3D * Entity::getPosition ( )

Retrieve the object's position.

Returns: Pointer to the object's 3D vector defining its position

Definition at line 223 of file Entity.c.

# getRadius()

fixed_t Entity::getRadius ( )

virtual

Retrieve the object's radius.

Returns: Radius

Reimplemented in Actor.

Definition at line 566 of file Entity.c.

# getRotation()

const Rotation * Entity::getRotation ( )

Retrieve the object's rotation.

Returns: Pointer to the object's 3D rotation

Definition at line 230 of file Entity.c.

# getScale()

const Scale * Entity::getScale ( )

Retrieve the object's scale.

Returns: Pointer to the object's 3D

Definition at line 237 of file Entity.c.

# getSpeed()

fixed_t Entity::getSpeed ( )

Retrieve the object's current speed (velocity vector's magnitude).

Returns: Object's current speed (velocity vector's magnitude)

Definition at line 313 of file Entity.c.

# getTransformation()

const Transformation * Entity::getTransformation ( )

Retrieve the object's transformation.

Returns: Pointer to the object's 3D transformation

Definition at line 216 of file Entity.c.

# getVelocity()

const Vector3D * Entity::getVelocity ( )

Retrieve the object's velocity vector.

Returns: Pointer to the direction towards which the object is moving

Definition at line 299 of file Entity.c.

# handleMessage()

bool Entity::handleMessage ( Telegram telegram )

virtual

Receive and process a Telegram.

Parameters

telegram Received telegram to process

Returns: True if the telegram was processed

Reimplemented from ListenerObject.

Definition at line 66 of file Entity.c.

# hasColliders()

bool Entity::hasColliders ( )

Check if the entity has attached colliders.

Returns: True if the entity hast at least on collider arrached; false otherwise

# hide()

void Entity::hide ( )

virtual

Make this instance invisible.

Reimplemented in Container, and ParticleSystem.

Definition at line 545 of file Entity.c.

# hideColliders()

void Entity::hideColliders ( )

Make the entity's colliders invisible.

Definition at line 441 of file Entity.c.

# isMoving()

bool Entity::isMoving ( )

Check if the entity is moving.

Returns: True if the entity's body is moving; false otherwise

Definition at line 251 of file Entity.c.

# isSensibleToCollidingObjectBouncinessOnCollision()

bool Entity::isSensibleToCollidingObjectBouncinessOnCollision ( Entity collidingEntity )

virtual

Check if when the entity bounces it has to take into account the colliding object's bounciness.

Returns: True if the entity has to take into account the colliding object's bounciness when bouncing

Definition at line 673 of file Entity.c.

# isSensibleToCollidingObjectFrictionOnCollision()

bool Entity::isSensibleToCollidingObjectFrictionOnCollision ( Entity collidingEntity )

virtual

Check if when the entity bounces it has to take into account the colliding object's friction coefficient.

Returns: True if the entity has to take into account the colliding object's friction coefficient when bouncing

Definition at line 680 of file Entity.c.

# isSubjectToGravity()

bool Entity::isSubjectToGravity ( Vector3D gravity )

virtual

Check if the object is subject to provided gravity vector.

Returns: True if the provided gravity vector can affect the object; false otherwise

Definition at line 687 of file Entity.c.

# registerCollisions()

void Entity::registerCollisions ( bool activate )

Enable or disable the register of detected collisions.

Parameters

activate If false, this entity's colliders won't keep track of collisions, hence they won't notify of it of persisting (collisionPersists) collisions or when end (collisionEnds)

Definition at line 377 of file Entity.c.

# removeComponent()

void Entity::removeComponent ( Component component )

Remove a component from the entity.

Parameters

component Component to remove

Definition at line 127 of file Entity.c.

# removeComponents()

void Entity::removeComponents ( uint32 componentType )

Remove the components of a give type from the entity.

Parameters

componentType Type of components to remove

Definition at line 141 of file Entity.c.

# removedComponent()

void Entity::removedComponent ( Component component )

virtual

A component has been removed from this entity.

Parameters

component Removed component

Reimplemented in Particle, and Printer.

Definition at line 508 of file Entity.c.

# resetComponents()

void Entity::resetComponents ( )

Reset components.

Definition at line 201 of file Entity.c.

# setCollidersLayers()

void Entity::setCollidersLayers ( uint32 layers )

Set the layers in which this entity's colliders must live.

Parameters

layers Flags that determine the layers for the entity's colliders

Definition at line 384 of file Entity.c.

# setCollidersLayersToIgnore()

void Entity::setCollidersLayersToIgnore ( uint32 layersToIgnore )

Set the layers that the entity's colliders must ignore when detecting collision.

Parameters

layersToIgnore Flags that determine the layers with colliders to ignore when detecting collisions

Definition at line 409 of file Entity.c.

# setDirection()

void Entity::setDirection ( const Vector3D * direction )

virtual

Set the direction towards which the object must move.

Parameters

direction Pointer to a direction vector

Reimplemented in Container.

Definition at line 599 of file Entity.c.

# setPosition()

void Entity::setPosition ( const Vector3D * position )

virtual

Set the object's position.

Parameters

position 3D vector defining the object's new position

Reimplemented in Container.

Definition at line 573 of file Entity.c.

# setRotation()

void Entity::setRotation ( const Rotation * rotation )

virtual

Set the object's rotation.

Parameters

rotation Rotation

Reimplemented in Container.

Definition at line 585 of file Entity.c.

# setScale()

void Entity::setScale ( const Scale * scale )

virtual

Set the object's scale.

Parameters

scale Scale

Reimplemented in Container.

Definition at line 592 of file Entity.c.

# setTransparency()

void Entity::setTransparency ( uint8 transparency )

virtual

Set this instance's transparency effects.

Parameters

transparency Transparecy effect (__TRANSPARENCY_NONE, __EVEN or __ODD)

Reimplemented in Container, ParticleSystem, and Printer.

Definition at line 553 of file Entity.c.

# setVelocity()

bool Entity::setVelocity	(	const Vector3D *	velocity,
		bool	checkIfCanMove )

Set the entity's velocity vector.

Parameters

velocity	Velocity vector to assign to the entity's body
checkIfCanMove	If true, the entity checks that none of its colliders will enter a collision if it were to move in the direction of the provided velocity

Returns: True if the entity started to move in the direction specified by the provided velocity vector

Definition at line 275 of file Entity.c.

# setVisible()

void Entity::setVisible ( )

Set this instance's visibility flag up.

Definition at line 208 of file Entity.c.

# show()

void Entity::show ( )

virtual

Make this instance visible.

Reimplemented in Container, and ParticleSystem.

Definition at line 537 of file Entity.c.

# showColliders()

void Entity::showColliders ( )

Make the entity's colliders visible.

Definition at line 434 of file Entity.c.

# stopAllMovement()

void Entity::stopAllMovement ( )

Stop all entity's movement.

Definition at line 258 of file Entity.c.

# stopMovement()

void Entity::stopMovement ( uint16 axis )

Stop the entity's movement in the specified axis.

Parameters

axis	Axis on which to stop the movement of the entity's body

Definition at line 265 of file Entity.c.

# Member Data Documentation

# body

Body Entity::body

protected

Cache the Body component for physics simulations to avoid having constantly grabing it from the ComponentManager

Definition at line 50 of file Entity.h.

# components

VirtualList* Entity::components

protected

Linked list of attached components.

Definition at line 43 of file Entity.h.

# isVisible

bool Entity::isVisible

protected

Flag used for streaming purposes.

Definition at line 53 of file Entity.h.

# transformation

Transformation Entity::transformation

protected

3D transformation

Definition at line 46 of file Entity.h.

The documentation for this class was generated from the following files:

VUEngine-Core/source/Entity/Entity.h
VUEngine-Core/source/Entity/Entity.c

Introduction

Setup

Basics

Language

User Guide

API

Tutorial

Entity Class Reference

# Public Member Functions

# Protected Attributes

# Additional Inherited Members

# Detailed Description

# Member Function Documentation

# addComponent()

# addComponents()

# addedComponent()

# applyForce()

# calculateSize()

# canMoveTowards()

# checkCollisions()

# clearComponentLists()

# collisionEnds()

# collisionPersists()

# collisionStarts()

# constructor()

# createComponents()

# destroyComponents()

# disableCollisions()

# enableCollisions()

# getBody()

# getBounciness()

# getCollidersLayers()

# getCollidersLayersToIgnore()

# getComponentAtIndex()

# getComponents()

# getComponentsCount()

# getComponentsOfClass()

# getDirection()

# getFrictionCoefficient()

# getInGameType()

# getMaximumSpeed()

# getPosition()

# getRadius()

# getRotation()

# getScale()

# getSpeed()

# getTransformation()

# getVelocity()

# handleMessage()

# hasColliders()

# hide()

# hideColliders()

# isMoving()

# isSensibleToCollidingObjectBouncinessOnCollision()

# isSensibleToCollidingObjectFrictionOnCollision()

# isSubjectToGravity()

# registerCollisions()

# removeComponent()

# removeComponents()

# removedComponent()

# resetComponents()

# setCollidersLayers()

# setCollidersLayersToIgnore()

# setDirection()

# setPosition()

# setRotation()

# setScale()

# setTransparency()

# setVelocity()

# setVisible()

# show()

# showColliders()

# stopAllMovement()

# stopMovement()

# Member Data Documentation

# body

# components

# isVisible

# transformation
